網鏈式烘干燒結爐
網鏈式烘干燒結爐
設備名稱 Equipment Name
網鏈式烘干燒結爐 Drying &Firing Furnace (Mesh-belt Conveyor)
設備型號 Equipment Model
SC-SFL02L/RA
設備用途 Equipment Application
把印刷好的前后電極燒融到PN結層，形成歐姆接觸，讓電池片細柵線收集到的電能通過主柵線匯流出來。
The printed front &rear electrodes are fired and fused into the PN junction layer to form an ohmic contact through firing process,which allows the electrical energy collected by the fingers to flow out through the busbars.
工藝流程 Process Flow
烘干→預燒結→主燒結→冷卻
Drying→Pre-firing→Firing→Cooling
技術特點 Features
1、雙軌產線，機架電氣完全獨立，互不干擾。
Dual-track production line, the rack and electrical parts completely independent without interfering operations of each other.
2、大產能：匹配絲印工序產能，CT≤0.80秒，基于硅片尺寸M10（18X±0.5mm*18X±0.5mm）。
High throughput: match with the throughput of screen printing process, CT≤0.80s, based on silicon wafer size M10 (18X±0.5mm*18X±0.5mm).

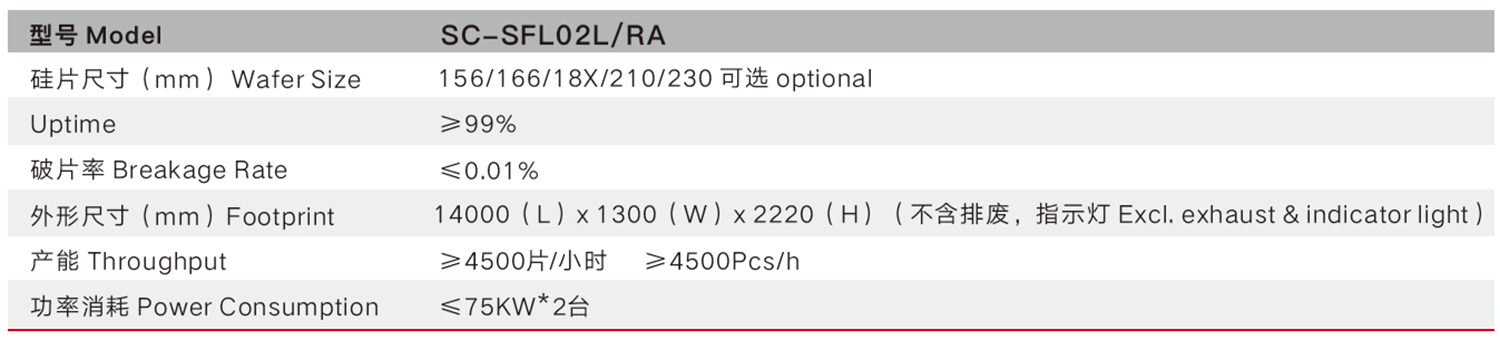

設備參數(shù) Parameters
